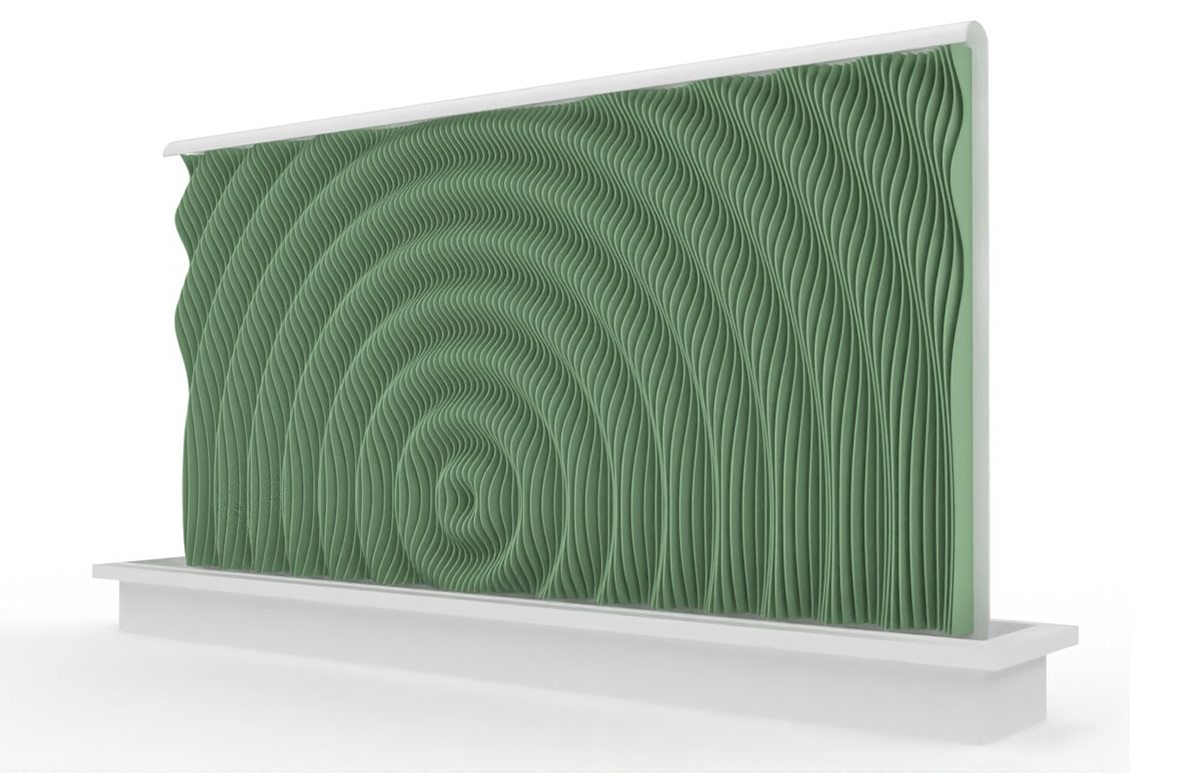

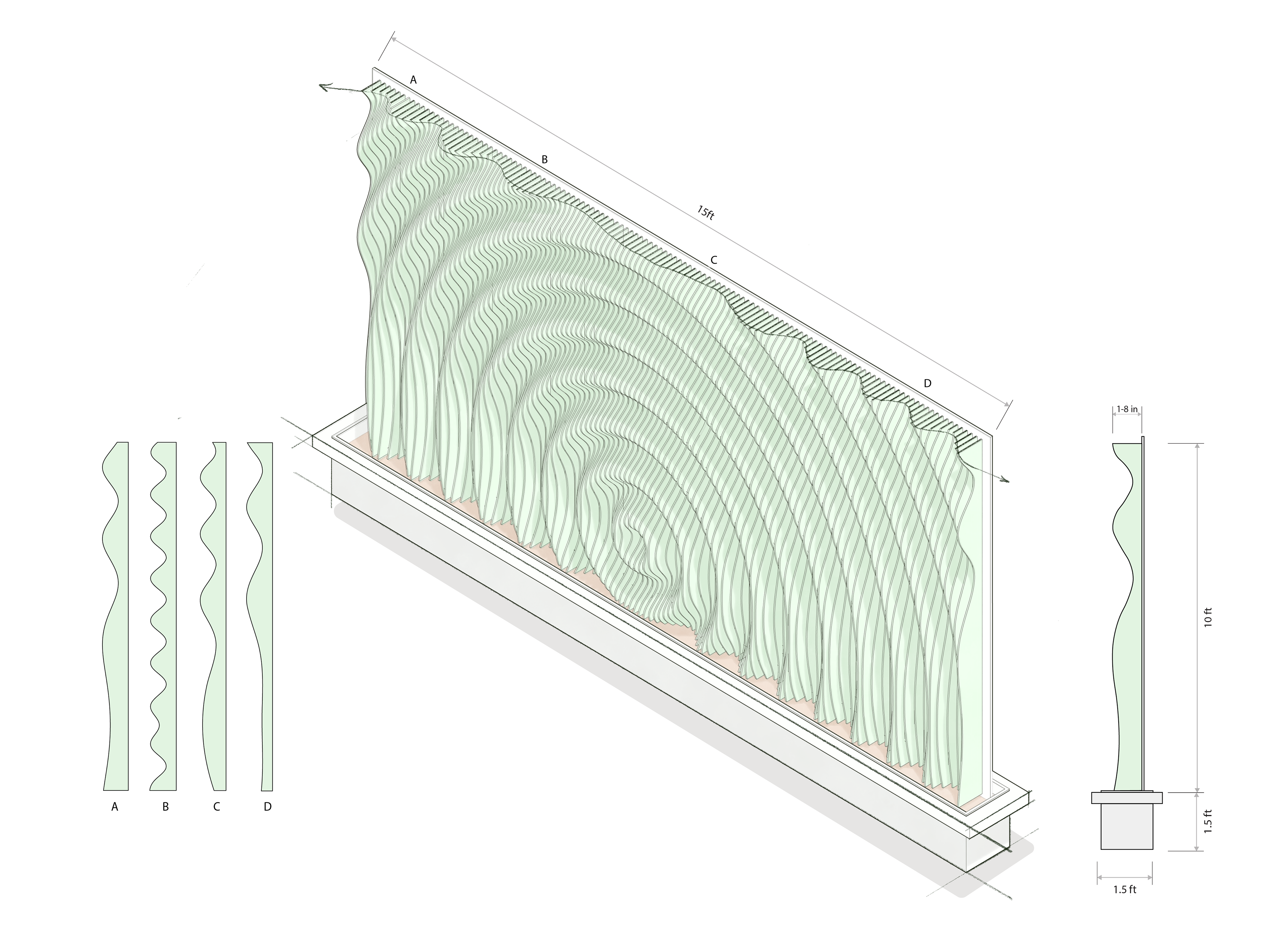

Dimensions: 15 ft x 10 ft high
Features elegantly curved vertical slats that create a captivating ripple effect, seamlessly integrating a planter filled with lush greenery at the base and a minimalist bench for seating
Made from high-quality materials in soothing greens and neutral grays, ideal for both modern and traditional spaces
Perfect for offices, lobbies, or large open areas, this divider enhances privacy, sound insulation, and connects indoor environments with nature

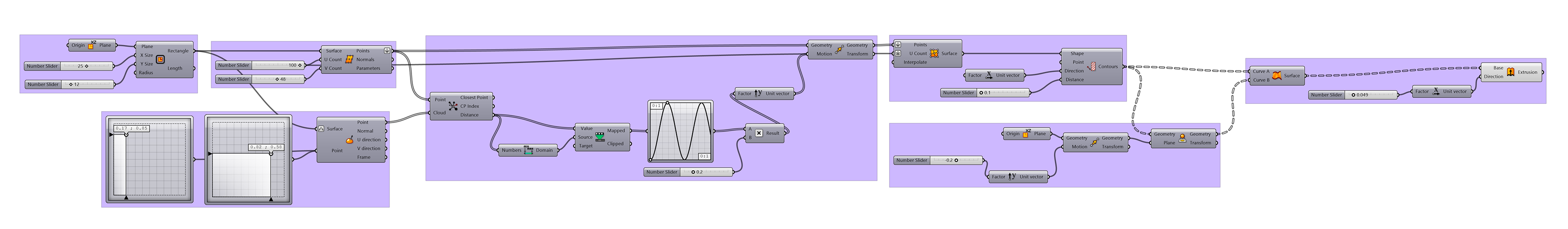

Grasshopper Script for Rhino8
Points are defined with one or two Multi-Dimensional sliders. These points may influence the curvature and orientation of the rippled slats, dictating how the ripples propagate across the wall's surface.
Surface Division: The script divides the main wall surface into smaller, manageable segments or panels. These panels are what eventually morph to form the ripple effect.
Wave Graph Mapper: Utilizing a function, of sine or cosine waves, the script calculates the displacement of each panel based on its proximity to the control points. This displacement mimics a natural wave, creating the ripple effect.
Size Adjustment: Other Sliders and values allow for real-time adjustments to the wave's amplitude and frequency, giving the user control over the appearance and intensity of the ripples. As well as the depth, thickness and space between the indviual slats.
